NingBo Die-Casting Man Technology Co.,ltd.
Ana sayfa Ürünlerled sokak lambası konut

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

Çin NingBo Die-Casting Man Technology Co.,ltd. Sertifikalar
Çin NingBo Die-Casting Man Technology Co.,ltd. Sertifikalar
Altın tedarikçisi, satın alma yapmak için zaman bana çok tasarruf edin! Ve her zaman, profesyonel öneri vererek iş bana çok yardımcı! Teşekkürler!

—— Ian Nicholas

Kaliteli ürünler, düşük fiyat ve kaliteli hizmet. Layık güven ve tavsiye iş ortağı.

—— Michal Jussize

Merhaba Jenny, kargoyu aldım.

—— Ryan Retherford

Die cast adam ile 3 yıldır işbirliği yapıyorum.

—— Diana

Ben sohbet şimdi

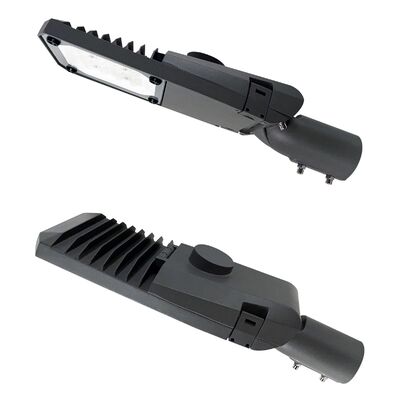

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

Büyük resim :  IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights

Ürün ayrıntıları:
Menşe yeri: NINGBO, ÇİN
Marka adı: Die-casting Man
Sertifika: CE. EMC, LVD, ENEC, RoHs
Model numarası: YASL-28-240M
Ödeme & teslimat koşulları:
Min sipariş miktarı: Mercedes Benz E-Serisi
Fiyat: US$21.6 - US$44.6
Ambalaj bilgileri: 1 adet/CTN
Teslim süresi: 7-35 gün
Ödeme koşulları: TT
Yetenek temini: 50000pcs/m
Detaylı ürün tanımı
Işık Akısı: 3000lm-20000lm Garanti: 3-5 yıl
Çalışma Sıcaklığı: -40°C-50°C Renk: Özelleştirilmiş RAL. Hayır. Gri, siyah, beyaz gibi
Işık kaynağı: Nükleer Santral Giriş Gerilimi: AC90-305V
Renk: >70 Malzeme: Alüminyum Alaşım
Vurgulamak:

IP66 waterproof LED street light

,

IK08 rated outdoor pole luminaire

,

SMD 3030 LED street light

IP66 IK08 Waterproof Pole Luminaire 80W 100W 120W SMD 3030 LED Outdoor Street Lights
Product Specifications
Model NO. Input Wattage (W) Installation Pipe Diameter Installation Height (m)
SL-28-40 30/40/50 φ48/60mm 3-8
SL-28-60 50/60/80 φ48/60mm 4-8
SL-28-90 80/100/120 φ60mm 6-10
SL-28-120 120/150 φ60mm 8-12
SL-28-160 150/180/200 φ60mm 8-12
SL-25-240 200/240/320 φ60mm 8-14
Input Voltage: 90~305Vac
Frequency Range: 50/60Hz
Power Factor: ≥0.9
Light Source: LED
Driver Options: Inventronics, Meanwell, or other brands upon request
Luminaire Efficacy: 130-190 lm/w
Color Temperature (CCT): 4000K (3000K/5000K/5700K upon request)
Color Rendering Index (Ra): ≥70
Dimming Options: Dali (optional), 1-10V (optional), PWM (optional), Smart control management system (upon request)
Product Features
  • Product Name: LED Street Light Fixtures
  • Color: Customized RAL No. (Gray, Black, White)
  • Beam Angle: 120°
  • Dimension: Customized
  • Working Temperature: -40°C to 50°C
  • CRI: >70
  • Projector Lamp Module: Yes
  • Aluminium LED Street Lamp: Yes
Technical Parameters
Parameter Specification
Working Temperature -40°C to 50°C
Color Temperature 3000K-6000K
Luminous Flux 3000lm-20000lm
Lifespan >50,000 hours
Light Source LED
Warranty 3-5 Years
Power Factor >0.95
CRI >70
Dimension Customized
IP Rating IP65
Applications & Certifications

These LED street lights are designed to be durable and long-lasting, with a lifespan of over 50,000 hours. They are highly efficient with a power factor greater than 0.95, consuming less energy and being more cost-effective than traditional lighting systems.

The LED Street Light Fixtures are certified with CE, EMC, LVD, ENEC, and RoHS, ensuring the highest standards of safety, quality, and performance. They are IP66 and IK08 rated, making them resistant to dust, water, and impact, ideal for harsh outdoor environments.

Available in quantities as low as 1 piece, with prices ranging from US$21.6 to US$44.6. Packaged in single carton boxes for easy transportation. Delivery times range from 7 to 35 days depending on destination. Payment terms: TT. Supply capacity: up to 50,000 pieces per month.

IP66 IK08 Waterproof Pole luminaire 80w 100w 120w SMD 3030 Led outdoor street lights 0
